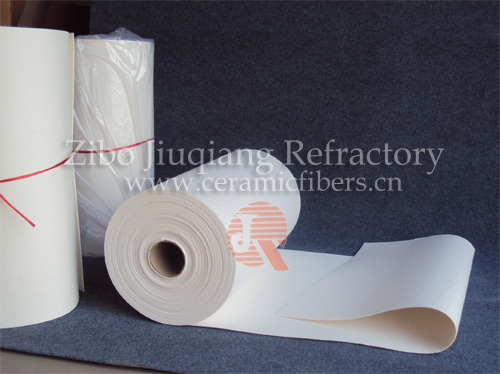

Ceramic Fiber Paper

JIUQIANG ceramic fiber paper is manufactured from high-grade ceramic fiber with low slag ball content, and formed into excellent flexible sheet through unique beating, deslagging, slurry-compounding, long net forming, vacuum water removal, drying, cutting and rolling processes.

  It is featured with high temperature resistance and heat insulation and high anti-melt capability, very low thermal conductivity, chemical corrosion resistance and thermal shock stability.
   So the paper can be widely used in building, glass industry for teeming pads separation. It provides maximum heat resistance and thermal insulation in limited space.

 Low thermal conductivity; Low heat storage
Contains no asbesto and anticorrosion

Good uniformity and smooth appearance

Good flexibility and toughness and resistance to avulsion

Good dielectric strength and sound insulation

 Excellent thermal shock resistance
Excellent chemical satability and machining property

Excellent corrosion resistance

Die cut gaskets between castings in coke oven doors, blast furnace hot air piping, aluminium heat treating furnace, tuyeres and heat treat furnaces.

Backup for brick and monolithic refractories in blast furnace stoves, piping, tundish, ladle, hot metal cars, trough etc.

Mould wrapping for controlled cooling

SEN isulation wraping

Shield for welding & brazing operation

Rotary klin back-up insulation

Fabricated into tapout cones for Aluminium industry.

Strips in bottom of ingot mould for sealing

Expansion joint packing

Induction coil liner

Mould liner

Silencer interleaf

Ladle & tundish insulation

Asbestos paper replacement

Hot top linings

Thermal and electrical insulation.

Grade		Standard	High Pure		High Aluminium	Zirconium
Max. Temperature (℃)		1050	1150		1260	1430
Shrinkage on Heating (%)		800℃×24h≤-3	1000℃×24h≤-3		1280℃×24h≤-3	1400℃×24h≤-3
Organic Content (%)		≤5	≤5		≤5	≤5
Thermal conductivity by mean temp. (W/m.k.) (250kg/m3)	200℃	0.055~0.065			0.060~0.070
	400℃	0.110~0.120			0.105~0.125
	600℃	0.160~0.170			0.170~0.180
Chemical Composition (%)	AL2O3	43		47	55		38
	SiO2	53		51	44		44
	Fe2O3 + Ti2O3	≤1.2		≤0.3	≤0.3		≤0.2
	CaO + MgO	≤0.3		≤0.3	≤0.3		≤0.2
	NaO + KO2	≤0.5		≤0.3	≤0.3		≤0.2
Density (kg/m3)		170~230
Size (mm)		Length: 60000/40000/30000/20000/15000/12000 Width: 1220/610 Thickness: 1~6  (Other sizes and shapes on request. )
Package		Carton box
Certificates		ISO9001-2000; ISO14001-2000

Remarks: The data above is for reference. The Max. temp. depends on the working conditions.
